Abstract
Background. Biomarkers for predicting treatment response to thrombolysis in acute ischemic stroke are currently lacking. Both, animal models and clinical studies have provided evidence that the kynurenine (KYN) pathway is activated in ischemic stroke.
Objectives. In our pilot study, we aimed to investigate whether KYN pathway enzymes and metabolites could serve as potential biomarkers for treatment response in the hyperacute phase of ischemic stroke.
Materials and methods. We included 48 acute ischemic stroke patients who received thrombolysis. Blood samples were taken both before and 12 h after treatment. Concentrations of 11 KYN metabolites were determined using ultra-high-performance liquid chromatography-mass spectrometry. To assess the treatment response, we used early neurological improvement (ENI), calculated as the difference between the admission and discharge National Institutes of Health Stroke Scale (NIHSS) scores. We performed receiver operating characteristic (ROC) analysis for KYN pathway metabolites and enzymes that showed a correlation with ENI.

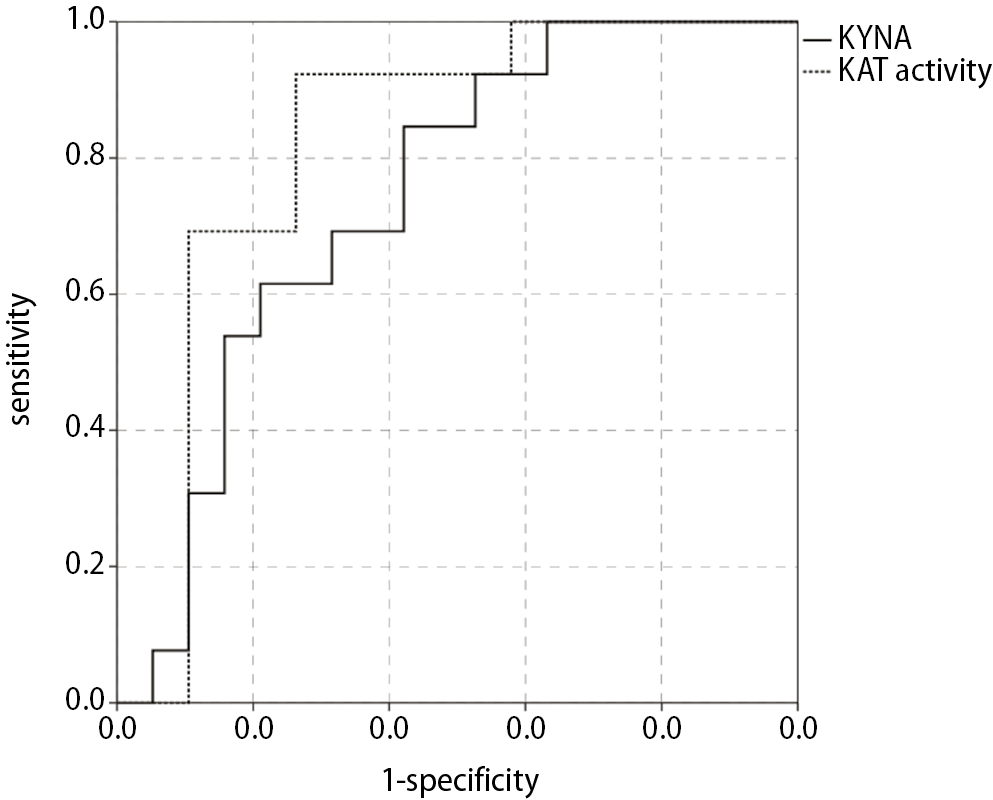

Results. In the samples taken before thrombolysis, significantly lower concentrations of kynurenic acid (KYNA) and kynurenine aminotransferase (KAT) activity were found in patients who had ENI (p = 0.01 and p = 0.002, respectively). According to the ROC analysis, the optimal cut-off value to predict ENI for KYNA was 37.80 nM (sensitivity (SN) 69.2%, specificity (SP) 68.4%) and 0.0127 for KAT activity (SN 92.3%, SP 73.7%).
Conclusions. Our research is the first clinical pilot study to analyze changes in the KYN pathway in ischemic stroke patients who received thrombolytic treatment. Based on our results, baseline KYNA concentration and KAT activity could serve as potential biomarkers to predict early treatment response to thrombolysis.
Key words: kynurenine, biomarker, ischemic stroke, acute stroke, thrombolysis
Introduction
Biomarkers are objective indicators of physiological or pathological processes and have valuable applications in predicting and monitoring clinical response to therapeutic interventions.1 At present, biomarkers aiding in prediction of response to intravenous thrombolysis treatment and prognosis in acute ischemic stroke are lacking in routine clinical practice.2 However, a few blood biomarkers have shown promise: copeptin, a fragment of vasopressin produced in the hypothalamus, was shown to increase the prognostic accuracy of the National Institutes of Health Stroke Scale (NIHSS) in predicting functional outcome and mortality.3 Matrix metalloproteinase-9 (MMP-9) levels correlated with hemorrhagic transformation after thrombolytic therapy, and S100B was elevated in patients with malignant middle cerebral artery syndrome.4, 5 Higher activated/inactivated thrombin-activatable fibrinolysis inhibitor levels correlated with higher NIHSS scores 2 days after treatment, and with poor outcome on the modified Rankin Scale (mRS) score at day 90.6 Faille et al. reported that low admission levels of soluble thrombomodulin and soluble endothelial protein C receptor in patients with arterial occlusion were associated with higher recanalization rates after thrombolytic therapy.7 In another study, low endogenous thrombin potential before thrombolysis was found to be an independent predictor of both short- and long-term mortality following treatment.8

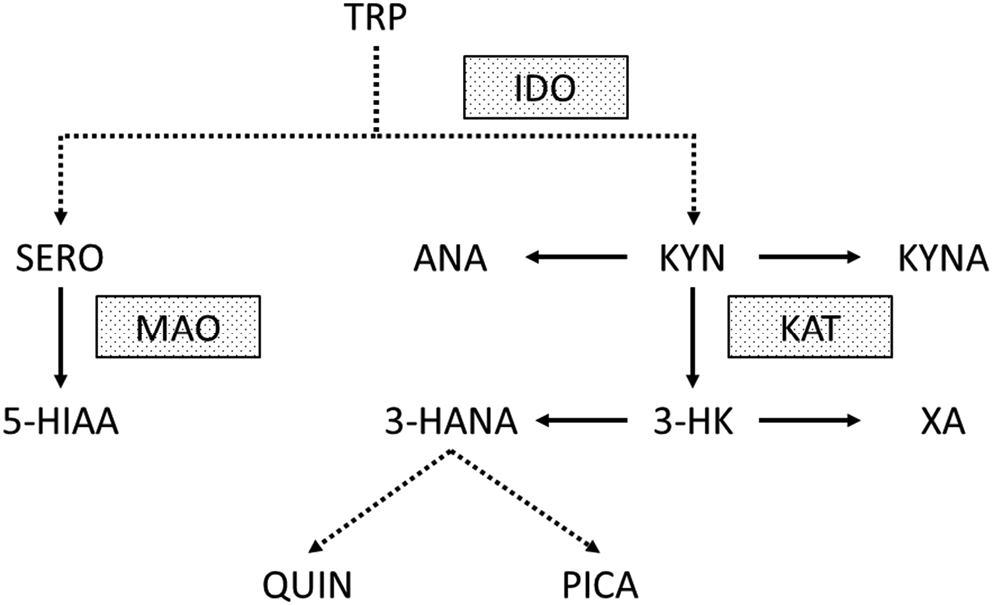

The kynurenine (KYN) pathway is the main route of tryptophan (TRP) metabolism. Animal models and clinical studies have unequivocally proven that the KYN pathway is activated in acute ischemic stroke.9, 10, 11, 12, 13, 14, 15 The first step of the pathway is the metabolism of TRP to KYN by indoleamine-2,3-dioxygenase (IDO). Inflammatory cytokines (e.g., interleukin 1β (IL-1β), tumor necrosis factor α (TNF-α) and interferon γ (INF-γ)) were shown to increase the expression of IDO.16, 17 Therefore, the activation of the KYN pathway following ischemic brain injury is likely part of a secondary inflammatory reaction.18, 19 The most well-studied metabolites of the pathway are kynurenic acid (KYNA), 3-hydroxykynurenine (3-HK) and quinolinic acid (QUIN). Kynurenic acid is metabolized by kynurenine aminotransferase (KAT) from KYN. It is a known endogenous, competitive inhibitor of the N-methyl-D-aspartate receptor (NMDAR) and is therefore thought to have neuroprotective properties.20 In contrast, 3-HK and QUIN are neurotoxic compounds that produce free radicals and cause oxidative stress. Further metabolites and enzymes of the KYN pathway that were analyzed in our study are highlighted in Figure 1.
The KYN pathway is linked to a number of traditional cerebrovascular risk factors that could influence serum levels of KYN metabolites.21 It has been demonstrated that IDO expression regulates blood pressure in mouse models of systemic inflammation.22 Administration of KYNA into the rostral ventrolateral medulla of spontaneously hypertensive rats, decreased mean arterial blood pressure by approx. 40 mm Hg.23 Median blood KYN levels of patients with stable angina pectoris were higher in hypertensive patients compared to normotensive individuals.24
Elevated xanthurenic acid (XA) levels have been found in diabetic patients.25 Xanthurenic acid forms a complex with insulin that does not activate insulin receptors.26 Therefore, elevated XA levels contribute to insulin resistance.27
Aging, the most relevant non-modifiable risk factor for cerebrovascular diseases, showed a significant association in a multivariate linear regression analysis with serum concentrations of KYN, TRP, and IDO activity.28 In the Hordaland Health Study, an inverse association was found between heavy smoking and anthranilic acid (AA), TRP, KYN, KYNA, XA, and 3-hydroxyanthranilic acid (3-HANA).29
Objectives
Our aim in this single-center pilot study was to investigate whether metabolites of the KYN pathway and activity of relevant enzymes measured before and 12 h after thrombolytic therapy in ischemic stroke could serve as potential biomarkers for predicting treatment response and prognosis.
Patients and methods
Patients and outcomes
Our inclusion criteria were patients with a diagnosis of acute ischemic stroke who underwent intravenous thrombolysis with alteplase between January and December 2018. We excluded patients who received thrombectomy and those who had a baseline mRS score >2. The pilot study was conducted in accordance with the revised Declaration of Helsinki, and the protocol was approved by the Ethics Committee of the University of Szeged, Albert Szent-Györgyi Clinical Centre (Project GINOP 2.3.2-15-2016-00048). All patients or their relatives gave informed consent for inclusion before the participation in the study.
C-reactive protein (CRP) and white cell count were measured from blood samples taken upon arrival in the emergency department. The time when the alteplase bolus was administered is referred to as “needle time”. All patients underwent repeat imaging approx. 24 h after treatment. The NIHSS and mRS scores were established by a certified expert. The NIHSS scores were calculated on admission before thrombolysis, and at discharge from the stroke unit.
Efficacy endpoints were early neurological improvement (ENI) and good functional outcome at 30 and 90 days after the stroke. We defined ENI as a ≥4 point decrease in the NIHSS score from admission to discharge. The criterion for good functional outcome was an mRS score ≤2.
Sampling
Peripheral venous blood samples were taken just before thrombolysis and 12 h after the initiation of treatment (samples A and B, respectively). Blood samples were centrifuged at 3000/min for 13 min, and sera were then stored at −80°C until further analysis. Due to restricted opening times of our biobank facility, samples were only processed on weekdays.
Measurement of kynurenines by ultra-high-performance liquid chromatography (UHPLC) coupled to tandem mass spectrometry (MS/MS)
Reagents and chemicals
All reagents and chemicals were of analytical or liquid chromatography-mass spectrometry (LC-MS) grade. Tryptophan and its metabolites and d4-picolinic acid (PICA) were purchased from Sigma-Aldrich (St. Louis, USA). The d3-3-HK was obtained from Buchem BV (Apeldoorn, the Netherlands). The other deuterated internal standards (ISs; d4-serotonin (SERO), d4-KYN, d3-3-3-HANA, d5-TRP, d5-5-hydroxy-3-indoleacetic acid (5-HIAA), d5-KYNA, d4-XA and d3-QUIN) were purchased from Toronto Research Chemicals (Toronto, Canada). Acetone, methanol (MeOH) and water were obtained from VWR Chemicals (Monroeville, USA). Formic acid (FA) was purchased from Thermo Fisher Scientific (Portsmouth, USA).
Preparation of standard, IS
and quality control solutions
Stock solutions, calibration standards and quality control (QC) samples were prepared as described previously.30 Calibration standards consisted of 100 μL of “blank” serum, 10 μL of standard solution mix (156.25–5000 nM SERO, 312.5–10,000 nM KYN, 7.8–250 nM 3-HANA, 6.25–200 µM TRP, 7.8–250 nM 5-HIAA, 6.25–200 nM ANA, 4.7–150 nM KYNA, 6.25–200 nM 3-HK, 1.5–50 nM XA, 3.125–100 nM PICA, and 62.5–2000 nM QUIN in 0.1% (v/v) aqueous FA), were treated with 370 μL of ice-cold acetone: MeOH (1:1, (v/v)) containing 10 μL of the SIL-IS mix (1500 nM d4-SERO, 1000 nM d4-KYN, 65 nM d3-3-HANA, 5250 nM d5-TRP, 200 nM d5-5-HIAA, 50 nM d5-KYNA, 90 nM d3-3-HK, 25 nM d4-XA, 80 nM d4-PICA, and 300 nM d3-QUIN) to precipitate proteins. After centrifugation, 400 μL of supernatant were transferred to a new tube, spun for 15 s and split into 2 equal parts. After concentration under a vacuum (Savant SC 110 A Speed Vac Plus; Savant, Holbrook, USA), half of the sample was treated with 70 μL of derivatizing reagent (n-butanol-acetyl chloride, 9:1, (v/v)) and was incubated for 1 h at 60°C. The mixture was dried under nitrogen before reconstitution. Both parts of the sample were dissolved in 100–100 μL of the starting eluent, vortexed, centrifuged, and combined.
Preparation of human serum samples for analysis
The human serum samples were prepared as described previously.30 Briefly, to 100 μL of each serum sample, 10 μL 0.1% (v/v) of aqueous FA and 370 μL of ice-cold acetone–MeOH (1:1, (v/v)) containing 10 μL of the SIL-IS mix (the same as used in the preparation of the calibration standards) were added, and 400 μL of supernatant was treated as above.
Instrumentation and UHPLC-MS/MS analysis
The UHPLC separation of TRP and its metabolites was performed on a pentafluorophenyl (PFP) column (100 Å, 100 mm × 2.1 mm, particle size 2.6 μm; Phenomenex, Torrance, USA) connected to an ACQUITY I-Class UPLC™ liquid chromatography system (Waters, Manchester, UK) using 0.1% (v/v) aqueous FA as solvent A and MeOH containing 0.1% (v/v) FA as solvent B. All mass spectrometric measurements were carried out on an online connected Q Exactive™ Plus Hybrid Quadrupole-Orbitrap Mass Spectrometer (Thermo Fisher Scientific, San Jose, USA), operating in the positive electrospray ionization mode. For quantitative mass spectrometric analysis through MS/MS, the parallel reaction monitoring (PRM) data acquisition mode was chosen. The optimization of parameters and the validation of the UHPLC-MS/MS analysis for human serum were carried out previously.30
Statistical analyses
Our outcome measures were categorical variables (ENI, good outcome at 30 and 90 days). Based on the Shapiro–Wilk test, some KYN metabolites and enzymatic activities did not show normal distribution (namely, 3-HANA, TRP, ANA, 3-HK, PICA, XA, monoamine oxidase (MAO), and KAT). Therefore, based on the distribution, continuous variables were either expressed as mean ± standard deviation (SD) or median and interquartile range (IQR). Kynurenine metabolite concentrations and enzymatic activities measured at the 2 timepoints were compared with either paired sample t-test (if the distribution was normal), or Wilcoxon matched-pairs signed-ranks test (when data was nonparametric) for cases where both samples were taken. To compare means of concentrations and enzymatic activities between groups with and without ENI or good functional outcome, we used the independent sample t-test or Mann–Whitney U test (depending on the distribution of the data). Boxplots were drawn to allow for better visualization of statistically significant findings. Furthermore, if statistical significance was met, we performed receiver operating characteristic (ROC) analysis. We calculated area under the curve (AUC), as well as sensitivity (SN) and specificity (SP) for different cut-off values. Due to the small sample size of our pilot study, logistic regression was not performed. A p-value of <0.05 was regarded statistically significant. Confidence intervals (CI) of 95% were presented where appropriate. Analyses were carried out with IBM SPSS v. 24 (IBM Corp., Armonk, USA) statistical software.
Results

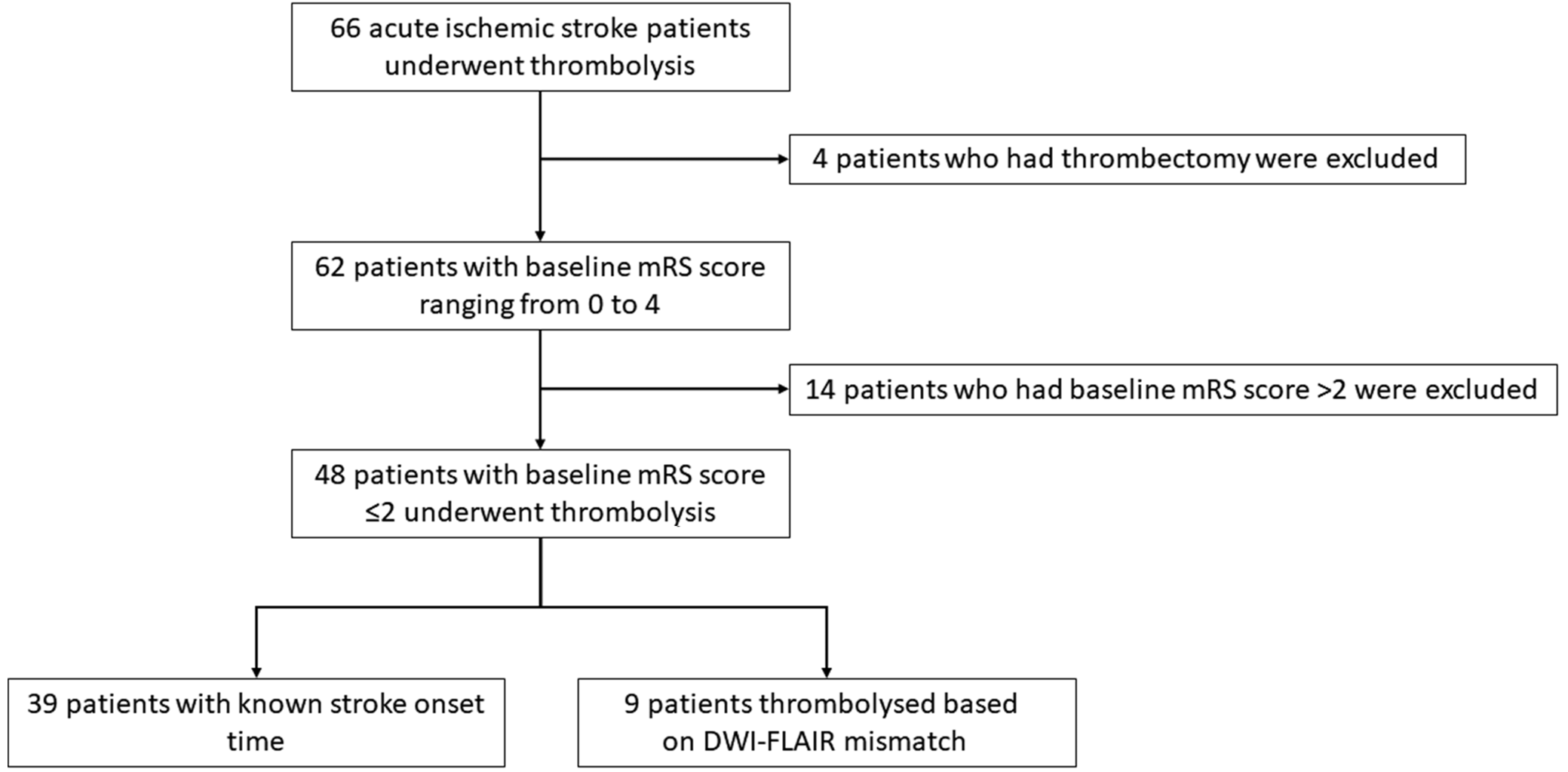

Our pilot study included 48 patients. Thirty-nine were known to be within the 4.5 h thrombolysis time window. In the remaining 9 patients with unknown stroke onset time, intravenous alteplase was administered on the basis of a diffusion-weighted imaging (DWI)-fluid-attenuated inversion recovery (FLAIR) mismatch demonstrated on an acute brain magnetic resonance imaging (MRI), as per the WAKE-UP trial.31 The flowchart of patient selection is shown in Figure 2. The clinical characteristics of our study population are highlighted in Table 1. Seventeen patients had large vessel occlusion (LVO), but mechanical thrombectomy was not performed due to limited availability of this service in our center at the time. We collected 32 blood samples before thrombolysis and 36 samples 12 h after treatment. Twenty-three patients had samples taken at both timepoints. The UHPLC-MS/MS method provided simultaneous quantification of TRP and its 10 most important metabolites (SERO, KYN, 3-HANA, 5-HIAA, ANA, KYNA, 3-HK, XA, PICA, and QUIN).30 Concentrations of the measured KYN metabolites of the 23 patients who had sampling at both timepoints are shown in Table 2. Significant changes in paired serum levels were observed for KYN, ANA, KYNA, XA, PICA, and QUIN. Enzymatic activity of IDO, MAO and KAT were calculated by the following ratios: KYN/TRP, 5-HIAA/SERO and KYNA/KYN, respectively. Enzymatic activities are also demonstrated in Table 2. The activity of IDO and MAO decreased significantly after 12 h.

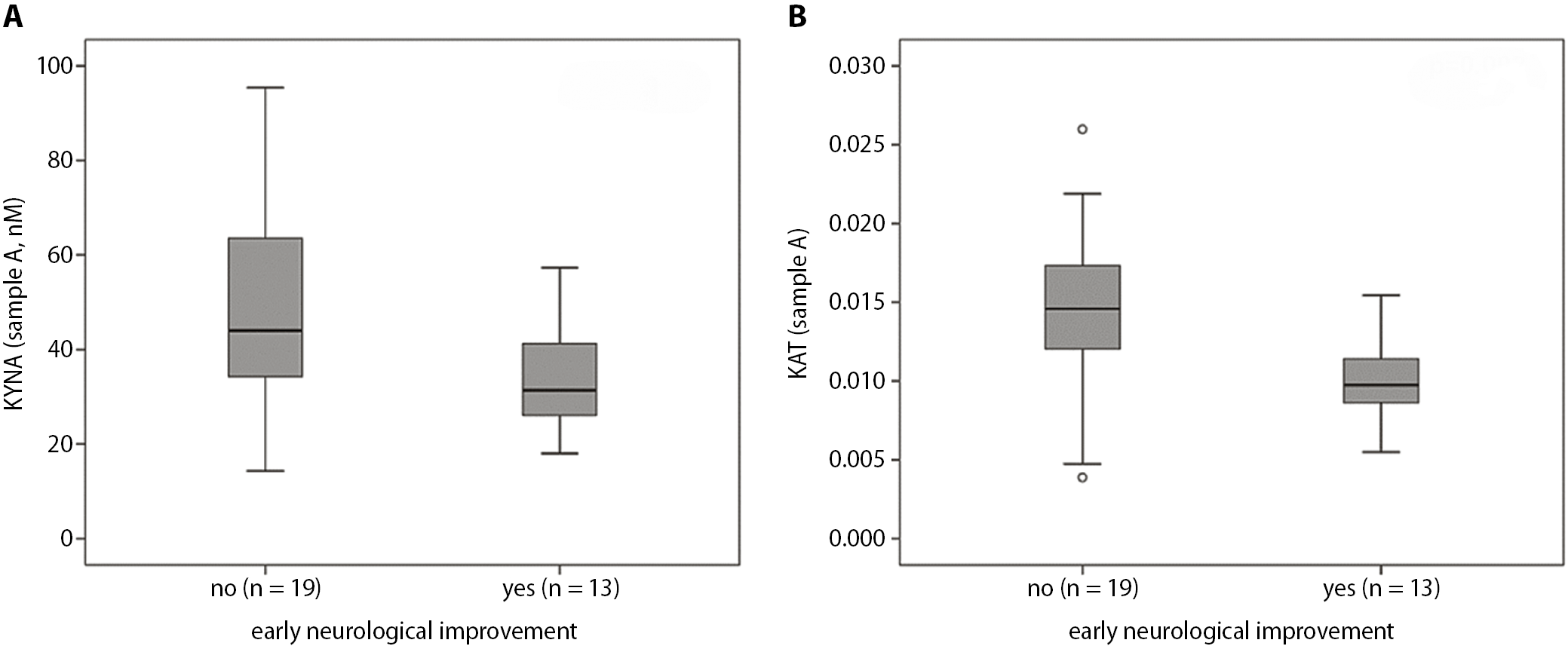

Patients with ENI had significantly lower concentrations of KYNA and lower KAT activity in sample A (independent sample t-test, p = 0.01, df = 30, t = −2.722; and Mann–Whitney U test, p = 0.002, z = −3.050, respectively, Figure 3). There was no statistically significant difference in sample B. Regarding the presence or absence of good outcome at 30 and 90 days, concentrations and enzymatic activities did not statistically significantly differ in samples A or B. Receiver operating characteristic analysis for ENI was performed using KYNA levels and KAT activity measured before treatment (Figure 4). The AUC for KYNA concentrations was 0.74, 95% CI = 0.57–0.91, p = 0.02. The optimal cut-off value to predict ENI was 37.8 nM (SN 69.2%, SP 68.4%). Similarly, the AUC for KAT activity was 0.82, 95% CI = 0.67–0.98, p = 0.002. The optimal cut-off activity was 0.0127 (SN 92.3%, SP 73.7%).
Discussion
To our knowledge, this is the first study to analyze the changes in KYN metabolite serum levels and enzymatic activity in acute ischemic stroke patients who received thrombolytic treatment.
The main finding of our pilot study is that ischemic stroke patients with ENI after thrombolysis have significantly lower concentrations of KYNA and lower KAT activity at baseline. Therefore, we propose that pre-thrombolysis KYNA levels and KAT activity are potential biomarkers of ENI. It should be highlighted that ENI was defined as the difference between the admission and discharge NIHSS scores, although we are aware that ENI is usually calculated with the NIHSS score taken 24 h after symptom onset or treatment.32 The mean time difference between the admission and discharge date in our population was 4.91 days. We believe that this five-day difference does not confound the treatment effect size of intravenous alteplase. Our view is that the true effect of thrombolysis is better reflected in the short-term NIHSS change than in the 30 and 90 day mRS scores, which are more dependent on a number of additional factors, such as the pre-stroke condition of patients, comorbidities, polypharmacy, the availability and quality of rehabilitation, and support provided by family.
Based on our previous research in animal stroke models, we had hypothesized that levels of neuroprotective KYNA would be higher in patients with better outcomes.13, 33 However, lower concentrations of KYNA and lower KAT activity were found to predict good treatment response, with good sensitivity and specificity. Our findings support previous observations by Darlington et al. of higher KYNA levels being detected in patients who died within 21 days after ischemic stroke compared to those who survived.11 It is unclear why increased levels of KYNA are associated with worse clinical outcome in ischemic stroke. One possible explanation is that KYNA is an endogenous NMDAR antagonist; therefore, it could further decrease synaptic activity in brain ischemia and, consequently, worsen brain function.11, 34 It has also been reported that KYNA can interfere with mitochondrial respiration, resulting in reduced ATP synthesis and increased levels of oxidative stress.35
We did not find any correlation between KYN metabolites or enzymes and good functional outcome measured 30 and 90 days after the stroke. This finding was somewhat surprising, given the results of the ROC analysis. Brouns et al. reported that the KYN/TRP ratio correlated with the mRS score 3 months after the ischemic stroke.10 Possible explanations behind the lack of correlation in our study are the small sample size and the effect of thrombolytic treatment.
Limitations
The main limitations of our pilot study are the small sample size and the absence of a control group. An ideal control group would have been acute ischemic stroke patients who did not receive alteplase treatment. However, this would have been unethical, given the evidence supporting thrombolytic treatment.36
We could not obtain blood samples from every patient at both timepoints due to occasional limited availability of our biobank facility, and the loss of several patients before follow-up. Due to the small number of individuals included in our study, logistic regression analysis was not applicable.
Also, it is important to note that KYN metabolites were measured from the serum of patients. Therefore, our findings do not necessarily reflect the intracerebral changes in KYN metabolites and enzymes in the setting of acute ischemic stroke. It has been previously reported that approx. 40% of KYN is produced locally in the central nervous system and the remaining 60% is taken up from circulation.37 Metabolites that can cross the blood-brain barrier (BBB) via large neutral amino acid transporters are TRP, KYN and 3-HK.20, 38 Kynurenic acid only has a limited ability to traverse across the BBB.
Conclusions
In conclusion, our pilot study provides further evidence that the KYN pathway is already activated within the first few hours after symptom onset in acute ischemic stroke. We propose that baseline serum KYNA concentration and KAT activity are potential biomarkers predicting early treatment response to thrombolytic therapy in stroke. Consequently, genetic polymorphisms of KAT could also hold promise as a further research target. Future studies with larger samples, well-chosen control groups and rigorous methodology are needed.
